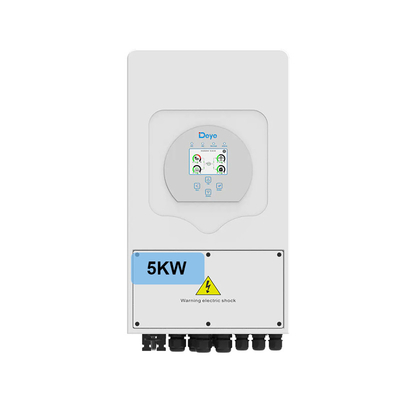

Model | SUN-3.6K-SG01LP1 | SUN-5K-SG01LP1 | ||
Battery Input Data | ||||
Battery Type | Lead-acid or Lithium-iron | |||
Battery Voltage Range (V) | 40-60V | |||
Max.Charging Current (A) | 90A | 120A | ||
Max.Discharging Current (A) | 90A | 120A | ||
Charging Curve | 3 Stages/Equalization | |||
External Temperature Sensor | Optional | |||
PV Strings Input Data | ||||
Max.DC Input Power (W) | 4680W | 6500W | ||
PV Input Voltage (V) | 370V(100V~500V) | |||
MPPT Range (V) | 125-425V | |||
Full Load DC Voltage Range | 240-425V | |||
Start-up Voltage (V) | 125V | |||
PV Input Current (A) | 11A+11A | |||
No.of MPPT Trackers | 2 | |||
No.of Strings Per MPPT Tracker | 1+1 | |||
AC Output Data | ||||
Rated AC Output and UPS Power (W) | 3600W | 5000W | ||
Max AC Output Power (W) | 3960W | 5500W | ||
Peak Power(off grid) | 2 times of rated power,10S | |||
AC Output Rated Current(A) | 15.7A | 21.7A | ||
Max.AC Current(A) | 18A | 25A | ||
Max Continuous AC Passthrough(A) | 35A | |||
Output Frequency and Voltage | 50/60Hz; 220/230/240Vac(single phase) | |||
Grid Type | Single Phase | |||
Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |||
Efficiency | ||||
Max.Efficiency | 97.60% | |||
Euro Efficiency | 96.50% | |||
MPPT Efficiency | 99.90% | |||
